Description
Save up to 75% on your spa / swimspa running costs with the specifically designed heat pump!

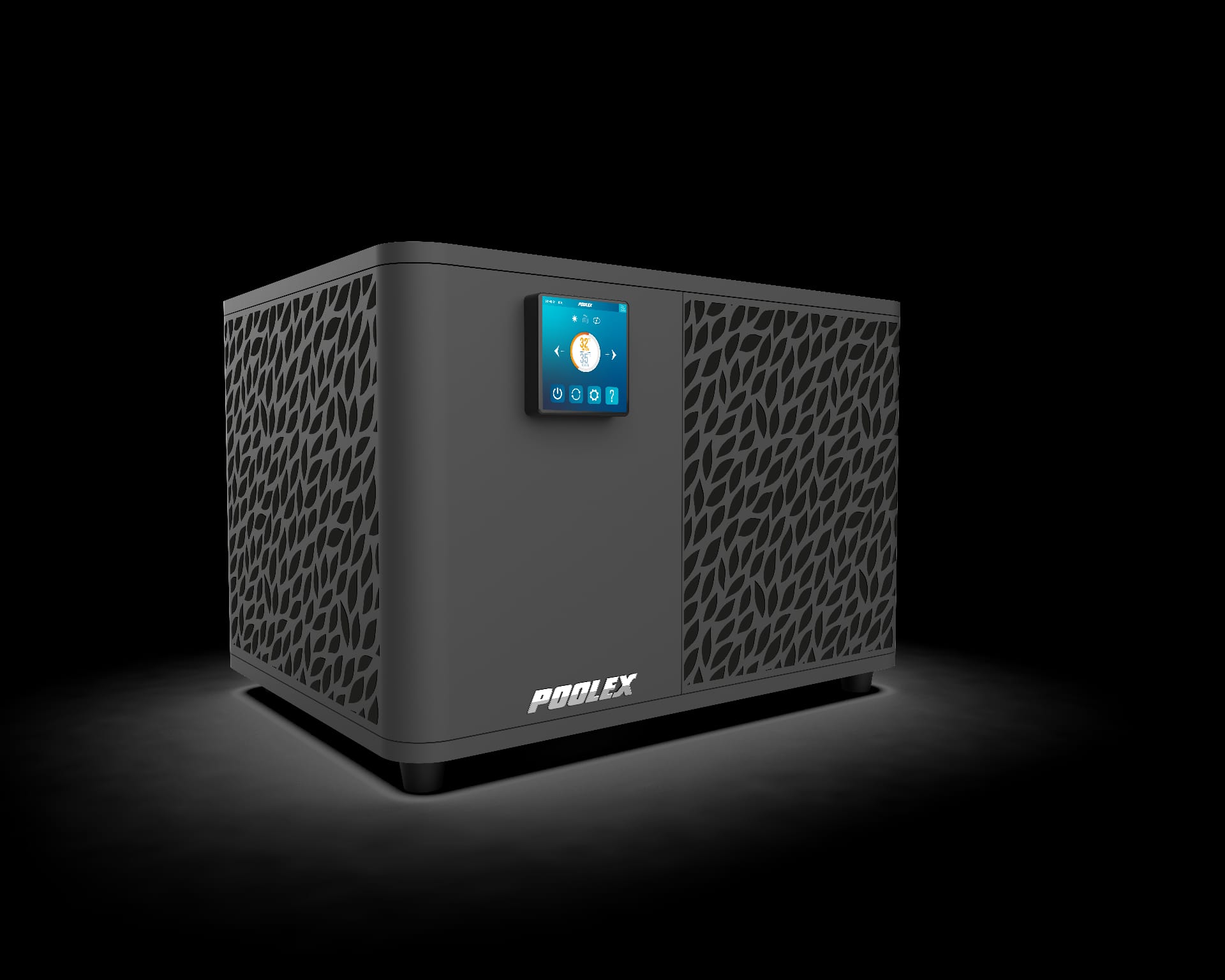

The IceSpa 7kW is a plug & play full Inverter heat pump for spas especially designed for cold climates, at -10°C air and 38°C water temperature, heat output is still 3.3kW thanks to the EVI (Enhanced Vapour Injection) compressor. In fact with a COP of 2.2, even at -10°C, the IceSpa is two times cheaper than the electric heater to run.
EVI (Enhanced Vapour Injection) improves the energy efficiency of refrigeration and air conditioning systems by injecting additional vapor into the compressor at low temperatures. It is thanks to this innovative technology that the IceSpa is able to perform so well in extreme weather conditions.
Operating down to -25°C, you can heat up your spa or hot tub in the middle of winter, the Full Inverter technology will reduce your energy consumption up to 75% at an equivalent power consumption compared to an electric heater.
Easy to install, the IceSpa is compatible with all hot tubs and connects itself as easily. Ideal for swim spas and Nordic baths, this heat pump will exceed your expectations.
The IceSpa features Wi-Fi temperature control and a programmable timer using the dedicated Poolex App, available for iOS and Android smart devices. A colour touchscreen that can be detached from the unit (wired) can be added as an option.
Key Features
• The power of Full Inverter & EVI efficiency right down to -25°C
• Up to 7kW of heat output at air temperature of 26°C and water temperature of 26°C
• Up to 4.7kW of heat output at air temperature of 15°C, water temperature of 38°C
• Up to 3.3kW of heat output at air temperature of -10°C, water temperature of 38°C
• Can be installed on any type of spa, hot tub, swim spa or Nordic bath (size dependent)
• Operates down to -25°C, automatic de-icing
• Reversible hot/cold for ultimate flexibility, can be used to heat or cool
• Heating range from 15 – 40°C, cooling range from 4 – 35°C
• Wi-Fi for easy remote control via the dedicated Poolex app, available for both iOS and Android smartphones
• Plug and play, comes with 4m mains cable and RCD plug (please note RCD plug will not fit outdoor sockets with covers)
• 32/38mm hose tail water connections, pipes and/or other fittings not supplied
• Integrated control of the spa / hot tub heater and/or auxiliary heat pump (relay/s optional)
• R32 Refrigerant
• Supplied with RCD mains cable, anti-vibration pads, 32/38mm hose tails, 2 x hose clips and winter cover
Three year parts warranty, seven year parts (total) on compressor and 15 year corrosion (total) on Titanium coil
Specifications
Heating Capacity A26/W26 | 3.3~7kW |
Power consumption | 0.28~1.4kW |
COP | 5~11.9 |
Heating Capacity A15/W38 | 2.8~4.7kW |
Power consumption | 0.67~1.3kW |
COP | 3.7~4.2 |
Heating Capacity A-10/W38 | 2.2~3.3kW |
Power consumption | 1.2~1.5kW |
COP | 1.8~2.1 |
Maximum Power | 1.7kW |
Voltage | 230v |
Noise Level (10m) | <28dB(A) |
Refrigerant | R32 |
Water Connections | 1″ male / 32-38mm |
Nominal Flow | 3m³/h |
Dimensions (L x W x H) | 710mm x 490mm x 500mm |
